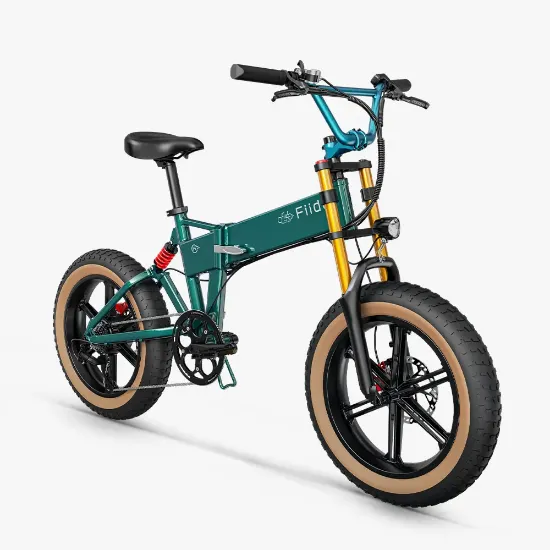

Fiido M1 Pro Fat Tire Electric Bike

Features at a Glance Performance Range: Up to 87.15km(2025 version), up to 88km(old version) Sensor: Torque sensor(2025 version); speed sensor(old version) Motor: 250W 50Nm motor(2025 version); 55Nm motor(old version) Gears: 7-speed Tires: 20" x 4.0 fat tires Payload: 120kg Suspension: Front fork, with 80mm travel (2025 version), 60mm travel(old version); rear shock absorber. Brakes: Hydraulic disc brakes（2025）/ Mechanical disc brake （2024） User-Friendly Features Folding: Foldable frame Battery: Removable Waterproof: IP54 full-bike Rider Fit Height: 155cm(5'1") - 200cm(6'7") Seat: Adjustable
SKU: 18
Old price: $980.00
$680.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
  • DETAILS
    Model Name
    M1 PRO
    Model Code
    M1 PRO
    Net Weight
    59.09 lbs (26.8kg)
    Payload
    264.55 lbs (120kg)
  • FRAMESET
    Frame
    20-inch aluminum alloy frame
    Fork
    2025 Upgrade: Aluminum alloy hydraulic dual-crown front fork (80mm travel, 135mm width)
    Old Version: Aluminum alloy hydraulic shock-absorbing front fork (60mm travel, 135mm width)
    Headset
    Aluminum alloy bearing limit headset
  • E-SYSTEM
    Drive Unit
    integrated wheel brushless geared motor
    Battery
    DMEGC 556.8Wh (2025 version)
    DMEGC 614.4Wh (old version)
    Charger
    48V2A
    Display
    LCD 1.47 inch
  • DRIVETRAIN
    Rear Derailleur
    SHIMANO TY300D
    Shifters
    SHIMANO TX50
    Chain
    KMC Z7
    Crank
    Aluminum alloy 52T
    Rear Cogs
    SHIMANO TZ500 7S (14-28T)
    Sensor
    2025 Upgrade: Mivice S200 torque sensor
    Old version: 12-magnet cadence sensor
  • BRAKES
    Brakes
    Dual-piston hydraulic disc brake with power cut-off
    Brake Levers
    Aluminum alloy three-finger brake lever
  • WHEELS
    Front Hub
    Magnesium alloy integrated wheel with dual bearings (detachable axle M10*135*185mm)
    Rims
    /
    Spokes
    /
    Tires
    CST 20*4.0
  • COMPONENTS
    Handlebar
    Aluminum alloy (Length: 560mm Maximum diameter: 25.4mm Minimum diameter: 22.2mm)
    Stem
    /
    Grips
    TPR non-slip handle grip (Length: about 130mm)
    Saddle
    VELO vacuum full-fit saddle
    Seatpost
    Aluminum alloy clamp head seatpost (Length: 400mm;Diameter: 33.9mm)

Geometry
